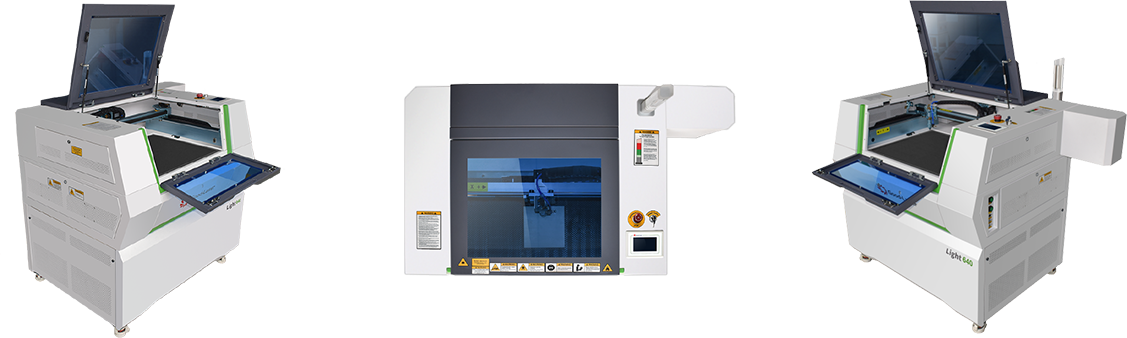

cutting & engraving machine

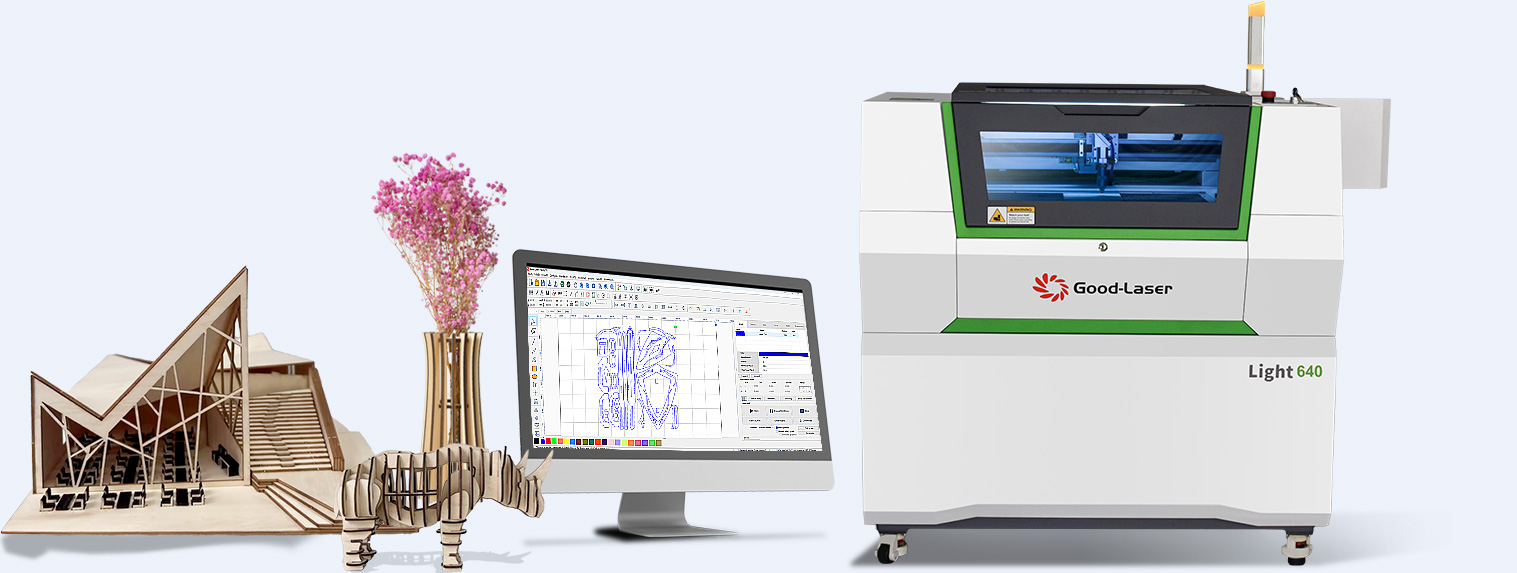

Laser System | Light 640 | Light 960 | Light 1390 | Light 1610 | |
Laser Tube Wattage | 40-60W | 80-100W | 100-130W | 100-130W | |

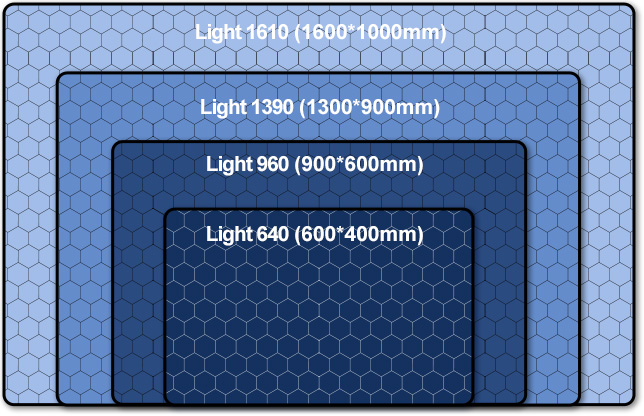

Work Area | 600x400mm (23.6″ x 15.7″) | 900x600mm (35.4″ x 23.6″) | 1300x900mm (51.2″x35.4″) | 1600x1000mm (63.0″x39.4″) | |

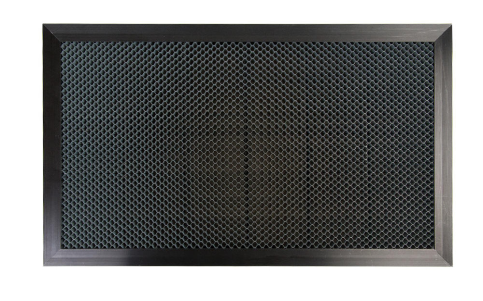

Max Part Size (WxLxH) | Front door closed | 700x530x170mm (after taking out the honeycomb bed) (27.6″ x 20.9″ x6.7″) | 1000x730x230mm (39.4″ x 28.7″ x9.0″) | 1400x1030x230m (55.1″ x 40.6″ x9.0″) | 1700x1130x230mm (66.9″ x 44.5″ x9.0″) |

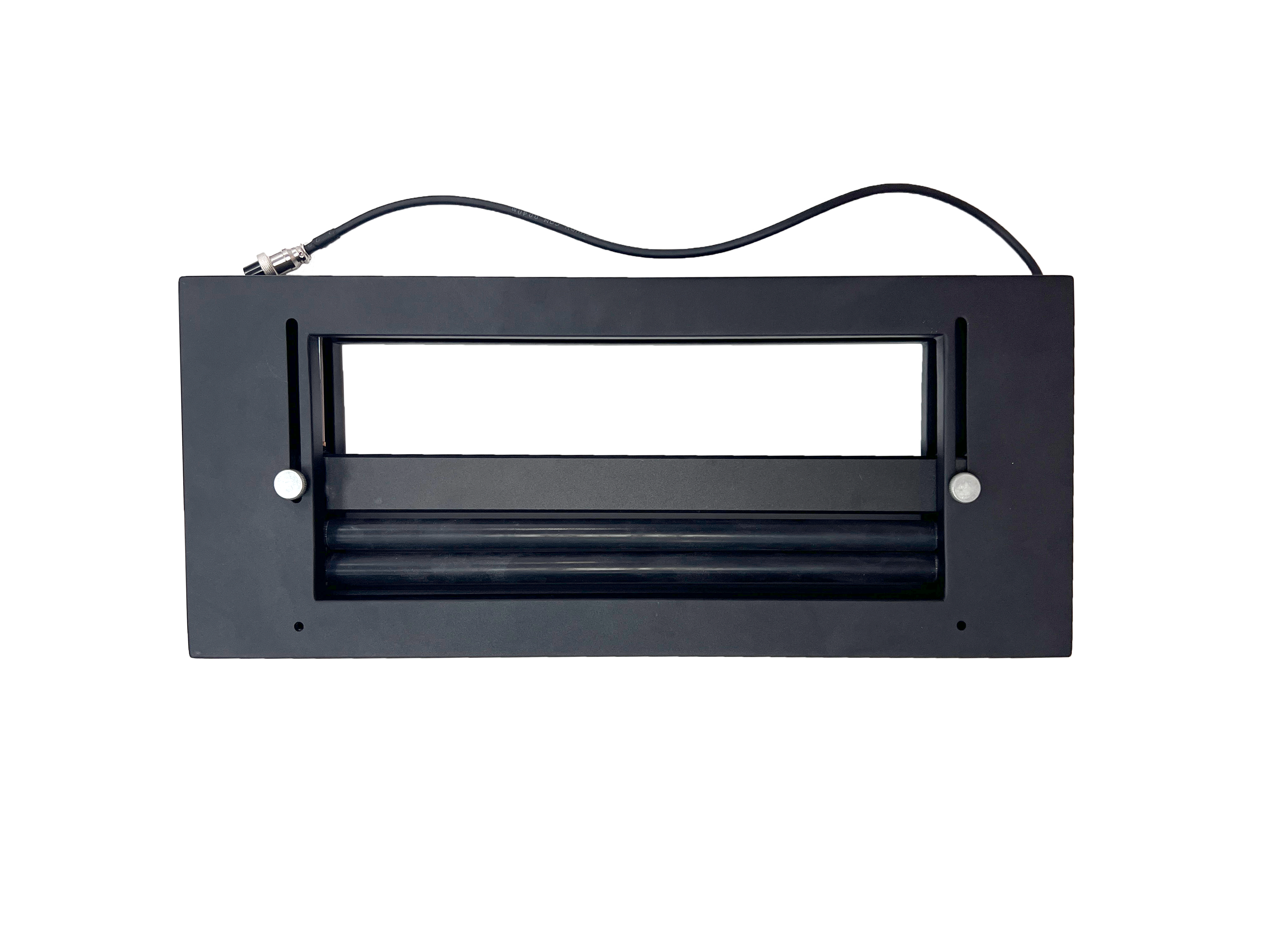

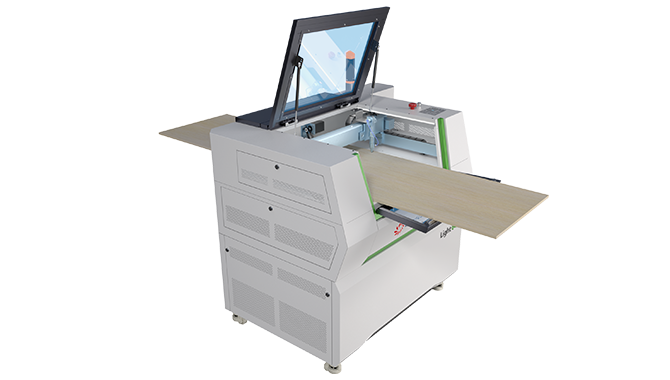

Pass-through door | 700x∞x20mm (27.6″ x ∞” x 0.8″) | 1000x∞x20mm (39.4″ x ∞” x0.8″) | 1400x∞x20mm (55.1″ x ∞” x0.8″) | 1700x∞x20mm (66.9″ x ∞” x0.8″) | |
Table Size | 700x530mm (27.6″ x 20.9″) | 1000x730mm (39.4″ x 28.7″) | 1400x1030mm (55.1″ x40.6″) | 1700x1130mm (66.9″ x 44.5″) | |
Z Axis Height | 150mm(5.9″) | 230mm(9.1″) | 230mm(9.1″) | 230mm(9.1″) | |
Dimensions(WxDxH) | 1070x810x610mm (42.1″ x 31.9″ x24″) | 1500x1105x1040mm (59.1″ x 43.5″ x40.9″) | 1900x1405x1040mm (74.8″ x 55.3″ x40.9″) | 2200x1505x1040mm (86.6″ x 59.3″ x40.9″) | |
Net Weight | 130kgs(287lbs) | 310kgs(683lbs) | 430kgs(948lbs) | 470kgs(1036lbs) | |
Laser Type | Sealed CO2 Glass Laser Tube | ||||
Cooling | Water Cooling | ||||

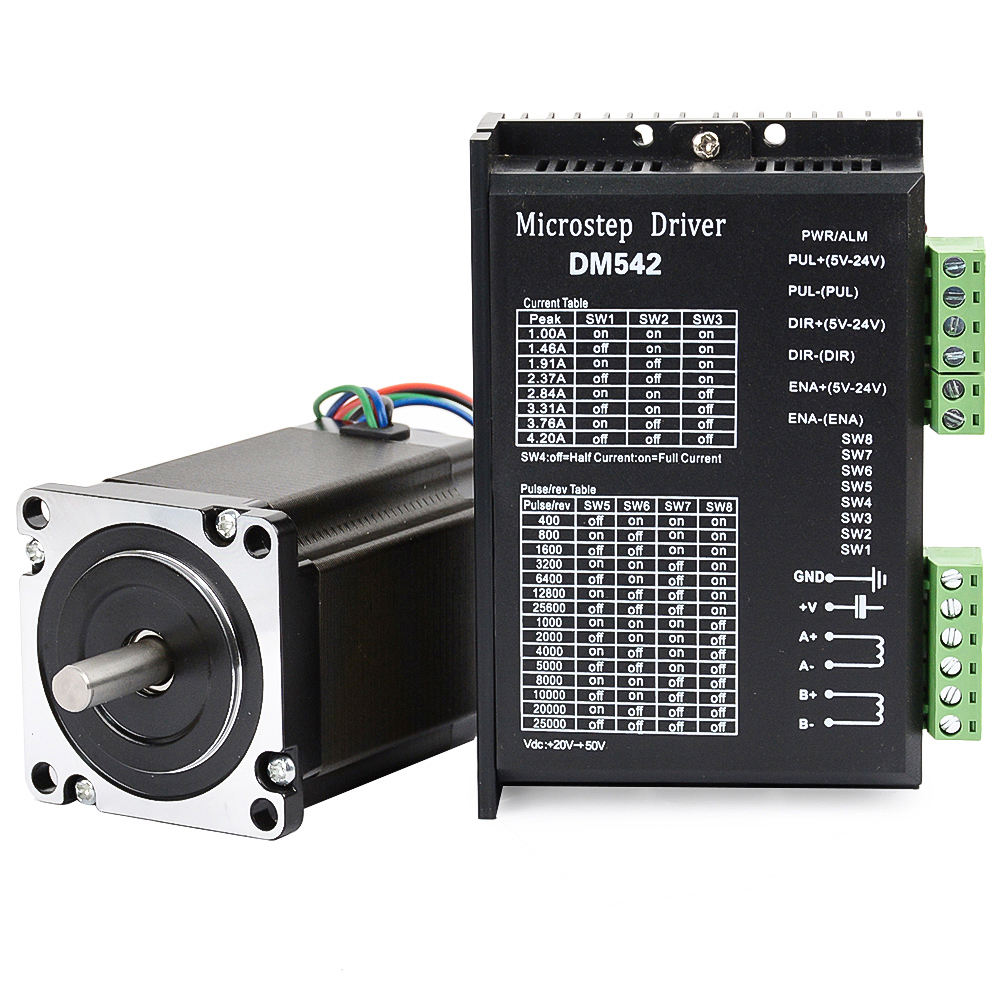

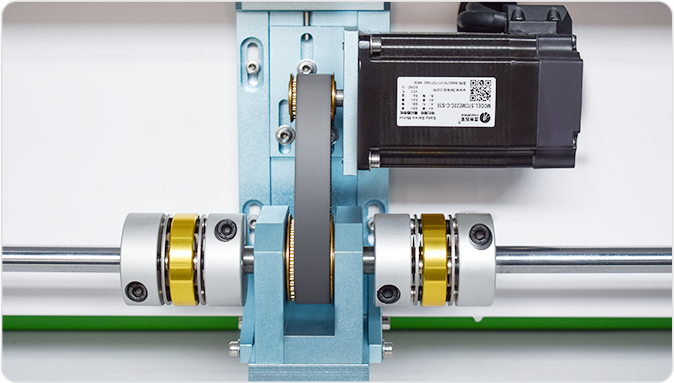

Motion Control System | High-Speed hibrid servo motors | ||||
Maximum Speed | 1000mm/s(39.4 IPS) | ||||
Speed and Power Control (engraving depth) | Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping. | ||||
Operating Modes | Optimized raster, vector, and combined mode | ||||
Resolution(DPI) | User-controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head) | ||||
Computer interface | Ethernet and USB connection | ||||
Compatible operating systems | Windows XP/2000/Vista/7/8/10,macOS | ||||
Buffer memory | 128MB standard | ||||
Display panel | 3.5″ LCD panel showing current file, total working time, laser power, speed, etc. | ||||
Electrical requirements | 110 to 240 volts, 50 or 60 Hz, single phase | ||||
Ventilation System | Integral exhaust fan. There is 1 output port, 24/35:150mm, 51/63:200mm in diameter in the rear of the case. |
